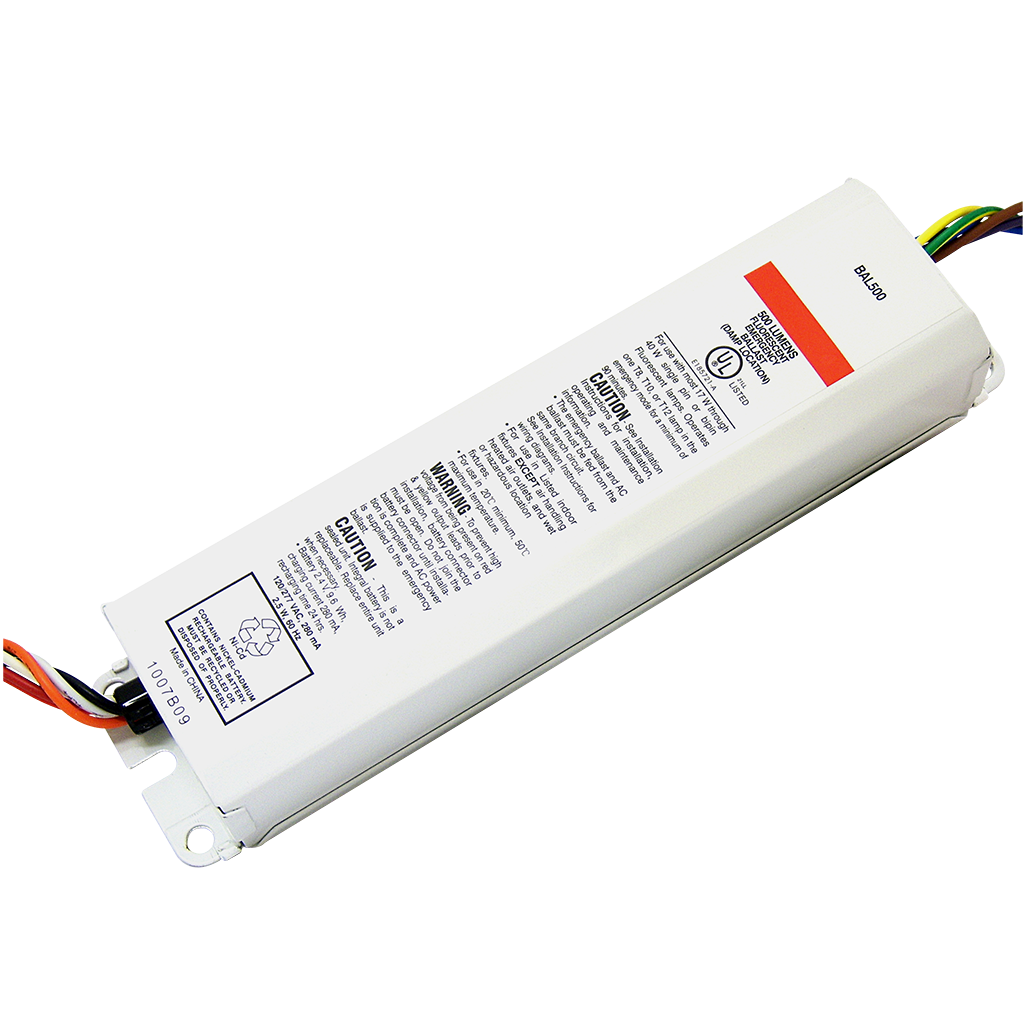

ECO-BAL500TD Fluorescent Emergency Ballast

Compact fluorescent emergency ballast with 500-lumen output, dual voltage, and time delay feature for commercial lighting

The ECO-BAL500TD converts new or existing fluorescent fixtures into emergency lighting, offering a 500-lumen output and dual 120/277V voltage input. It features a 2.4V NiCd battery with a time-delay enhancement and can be installed inside, on top, or remotely on compatible fixtures. This ballast is designed for switched and unswitched fixture use, and is constructed from durable painted steel in a compact form factor.

Click any image to explore the gallery

Applications

Suitable for upgrading fluorescent fixtures in commercial environments where low-profile, reliable emergency illumination is needed.

Specifications

Lumen Output
500 lumens
Operation Voltage
120V/277V
Battery
2.4V sealed NiCd, 90-minute emergency runtime
Lamp Compatibility
T5, T8, T12, CFL, Circular T9, U-Bend
Housing Material
Painted steel, white finish
Mounting Options
Inside, on top, or remote mounting
Certifications
UL924, NFPA 101, OSHA, damp location listed
Dimensions
9.4" L x 2.4" W x 1.5" H

Product Options

Please contact us to discuss options.
